Custom data自定义数据

For pose estimation, provide RGB-D, camera intrinsics, a metric mesh and a mask or box. The integrated detector can obtain regions when none are supplied. Depth and mesh coordinates use meters; camera intrinsics use pixels.

位姿估计需要 RGB-D、相机内参、米制网格及 mask 或框。未提供区域时可使用一体化检测器。深度与网格坐标单位为米，相机内参单位为像素。

To use your own capture, provide an RGB image, depth, camera intrinsics and the CAD meshes to search for. load_scene reads these inputs from a folder; the detector predicts instance regions and the pose estimator processes all candidates from the frame in batches.

接入自己的采集数据时，准备 RGB 图像、深度、相机内参和需要识别的 CAD 网格。load_scene 从目录读取这些输入；检测器预测实例区域，位姿估计器对同帧候选批量推理。

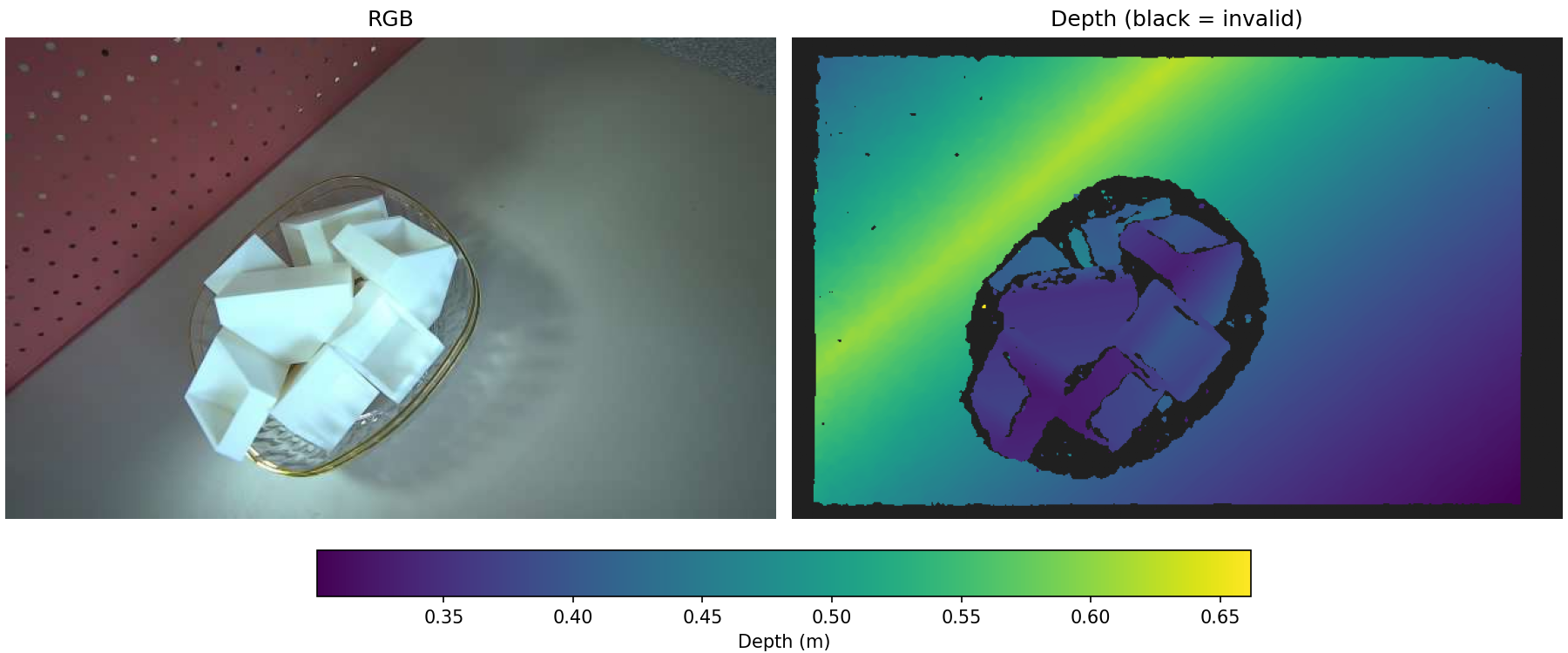

This page uses samples/own_block: HCCEPose RGB-D frame 000003, captured with an iHawk100R RGB-D camera (manufacturer's product page), with several white printed wedges and one supplied demo-bin-picking object-1 mesh. One CAD category corresponds to multiple instances. The mesh is supplied directly; this example performs detection and pose estimation.

本页使用 samples/own_block：HCCEPose 使用 iHawk100R RGB-D 相机采集的第 000003 帧（厂商产品页面），其中有多只白色打印三角块，并提供一份 demo-bin-picking 物体 1 网格。一份 CAD 类别对应多个实例，直接用已提供的网格进行检测与位姿估计。

The author's approximate camera prices are CNY 250 (US$37) used and CNY 1,000 (US$149) new. USD equivalents use the 5 October 2026 reference rate of approximately CNY 6.705 per US dollar.

作者提供的相机参考价格为：二手约人民币 250 元（约 37 美元），全新约人民币 1,000 元（约 149 美元）。美元按 2026-10-05 参考汇率 1 美元约合 6.705 元人民币换算。

Input files输入文件

my_scene/
├── rgb.png
├── depth.png
├── camera.json
├── objects.json
└── models/
    └── wedge.ply

Provide a mesh in the units declared by mesh_unit. Use the object’s model diameter for diameter_mm when available; the loader otherwise uses the mesh-bounds diagonal. The detector renders CAD templates from this mesh, so its geometry should represent the object to be recognized.

网格单位须与 mesh_unit 一致。已有模型直径时，在 diameter_mm 中填写；省略时，读取器使用网格包围盒对角线。检测器根据这份网格渲染 CAD 模板，因此网格几何应对应需要识别的物体。

Provide an RGB image, a depth image or meter-valued depth.npy, camera.json, objects.json, and the meshes referenced by the object list. The two JSON files from samples/own_block are shown below. Rotational symmetry is defined with the mesh preparation rather than in this frame manifest.

每帧需提供 RGB 图像、深度图或已换算为米的 depth.npy、camera.json、objects.json，以及物体列表引用的网格。下面列出 samples/own_block 的两份 JSON。旋转对称性在网格准备阶段定义，不放在这份帧清单里。

camera.json. fx, fy, cx, cy are pixels. The depth png times depth_scale is millimeters. Here depth_scale is 1, so the png values are already millimeters. The loader then divides by 1000 and passes meters to the pose call.

camera.json。fx、fy、cx、cy 是像素。深度 png 乘 depth_scale 是毫米。这里 depth_scale 是 1，所以 png 里的数已经是毫米。读取器再除以 1000，送给位姿调用的是米。

{
  "fx": 390.9188, "fy": 390.9188, "cx": 318.9914, "cy": 202.7166, "depth_scale": 1.0
}

objects.json. mesh_unit is "mm" or "m". This wedge ply is millimeters, so the loader multiplies its vertices by 0.001. One entry defines one class. file is resolved relative to scene_dir; models/wedge.ply points to the mesh inside this scene folder. diameter_mm may be omitted, in which case the loader uses the mesh-bounds diagonal. The wedge entry retains the 118.322 mm diameter provided by HCCEPose.

objects.json 的 mesh_unit 取 "mm" 或 "m"。这份三角块 ply 以毫米计，读取器将顶点乘以 0.001。一条记录定义一个类别。file 相对 scene_dir 解析；models/wedge.ply 指向该场景目录内的网格。diameter_mm 可以省略，此时读取器采用网格包围盒对角线。三角块记录保留 HCCEPose 给出的 118.322 mm 直径。

{
  "mesh_unit": "mm",
  "objects": [
    {"id": 1, "name": "wedge", "file": "models/wedge.ply", "diameter_mm": 118.322}
  ]
}

Run the example运行示例

Example examples/06_custom_scene.py defaults to samples/own_lmo. On its first run, it downloads the LM-O^[2] sample if needed and creates this custom folder from scene 2, frame 307, referencing the eight downloaded CADs. To use your own capture, prepare the input files shown above and set scene_dir to their folder. The wedge capture illustrated on this page is not included in the downloadable sample packs; using samples/own_block requires supplying its RGB-D frame and mesh. Leave template_path empty to build the CAD template bank in GPU memory; set a path to save and reuse the bank.

示例 examples/06_custom_scene.py 默认读取 samples/own_lmo。首次运行时，按需下载 LM-O^[2] 小样，并用场景 2 第 307 帧生成这个自定义目录，引用已下载的八份 CAD。接入自己的采集数据时，按上方格式准备输入文件，将 scene_dir 改为对应目录。本页展示的三角块实拍数据不包含在可下载小样包中；使用 samples/own_block 需提供其 RGB-D 图像与网格。template_path 留空时在显存中建立 CAD 模板库；需要保存并复用模板库时再填写路径。

A separate timing run uses this wedge input on RTX 5090, OpenGL + TensorRT^[1] FP16, with twelve hypotheses per region, three WAPR updates and two SAPR updates. Three complete warmups precede ten CUDA-synchronized calls with resident CAD meshes: median 2D detection 190.4 ms, pose stage 130.4 ms and complete detection-to-pose call 324.0 ms for ten input regions. The continuous total includes result assembly and per-frame transfers; it excludes loading, template/CAD preparation, warmup, drawing and final pose NMS. The interactive view below illustrates the pose selection and NMS results.

同一三角块输入另行在 RTX 5090、OpenGL + TensorRT^[1] FP16 下测速，每区域十二个候选姿态，三次 WAPR 更新及两次 SAPR 更新。CAD 提前准备并驻留，三次完整预热后进行十次 CUDA 同步调用：十个输入区域的 2D 检测中位数为 190.4 毫秒，位姿阶段 130.4 毫秒，检测到位姿的连续调用合计 324.0 毫秒。合计包含结果整理及逐帧传输，不含加载、模板与 CAD 准备、预热、绘图及最终位姿 NMS。下方交互视图展示位姿筛选与 NMS 结果。

For the wedge input, set scene_dir to "samples/own_block" in example 06. The Out excerpt is the recorded input-shape line for that choice; inference logs continue with dictionaries containing obj_id, name, score_2d and score_6d. No hand-rounded pose rows are shown as stdout.

三角块输入需在示例 06 中将 scene_dir 设为 "samples/own_block"。Out 摘录为该设置下已记录的输入形状行；推理日志随后打印含 obj_id、name、score_2d 与 score_6d 的字典，不将手工四舍五入的位姿行展示为标准输出。

rgb, depth_m, K, meshes, names = load_scene(scene_dir)
print("rgb", tuple(rgb.shape), "depth_m", tuple(depth_m.shape), "K", tuple(K.shape), "classes", names, flush=True)

mesh_only = {obj_id: pair[0] for obj_id, pair in meshes.items()}
if template_path:
    onboard_meshes(mesh_only, template_path, device=device)
    template = template_path
else:
    template = onboard_meshes(mesh_only, "", device=device)
detector = WAPRDet2D(template, device=device, backend=det_backend)
estimator = WAPREstimator(device=device)
prepared = estimator.prepare_meshes([pair[0] for pair in meshes.values()])
mesh_setup_seconds = estimator.last_mesh_setup_seconds
pose_meshes = {obj_id: (mesh, pair[1]) for (obj_id, pair), mesh in zip(meshes.items(), prepared)}

poses, timing, detections = estimate_frame_many_categories_many_instances(estimator, detector, rgb, depth_m, K, pose_meshes)
print("POSE_TIMING", timing, "model_setup_seconds", estimator.model_setup_seconds,
      "initial_mesh_setup_seconds", mesh_setup_seconds, flush=True)
print("det_ms", timing["total_ms"], "detections", len(detections), "instances", len(poses), flush=True)
if visualize_det:
    preview_detections = sorted(detections, key=lambda row: -float(row["score_2d"]))[:preview_top_k]
    print("2d_preview", len(preview_detections), "of", len(detections), flush=True)
    visualize_2d_detection(rgb, preview_detections, names=names, image=True, filename="custom_scene_det.jpg")
rows = []
for pose in poses:
    row = dict(pose)
    row["mesh"] = meshes[int(pose["obj_id"])][0]
    print(
        {
            "obj_id": pose["obj_id"],
            "name": pose.get("name", names.get(int(pose["obj_id"]), "")),
            "score_2d": pose["score_2d"],
            "score_6d": pose["score_6d"],
        },
        flush=True,
    )
    rows.append(row)

rgb (400, 640, 3) depth_m (400, 640) K (3, 3) classes {1: 'wedge'}
